AMON central heating furnaces are appliances with adjustable combustion process designed mainly for water heating up to the temperature not exceeding 90°C.

These furnaces are used in central heating installations in all residential buildings, trade halls, workshops, farms, hothouses, schools, etc.

They are produced with capacities of: 10 - 48 kW. AMON central heating furnaces must be installed in open-system installations only. They work in gravity or pump systems.

Standard equipment of the AMON boiler includes air draft control device.

Fuel type:

fine coal

coal

wood

briquette

Specifications

Detailed list		Technical specifications of AMON
Type		10	15	18	22	26	32	36	48
Rated power	kW	10	15	18	22	26	32	36	48
Power range	kW	3-10	4-13	5-18	6-22	8-26	9-32	14-36	19-48
Boiler heating surface	m²	1,0	1,5	1,8	2,2	2,6	3,2	3,6	4,8
Heating area	m²	do 90	do 130	130 -160	160 -180	180 -200	200 -250	250 -300	300 -400
Thermal efficiency	%	>=80
Maximum water temperature	°C	90
Minimum temperature of return	°C	60
Maximum working pressure	Bar	1,5
Fuel consumption at rated power	kg/h	2,0	2,3	2,6	3,2	3,6	4,3	5,0	7,7
Filling up hopper capacity	kg	29	38	47	56	65	77	127	200
Required burnt gas draught	Pa	20	20		22		25
Chimney hole diameter	cm²	270	270				350		390
Height of chimney	m	5	5			6	7
Water storage capacity	dm³	50	55	70	75	105	110	135	195
Flue diameter	mm	160							180
Diameter of supply and return connecting pipe	cal	GZ 2"

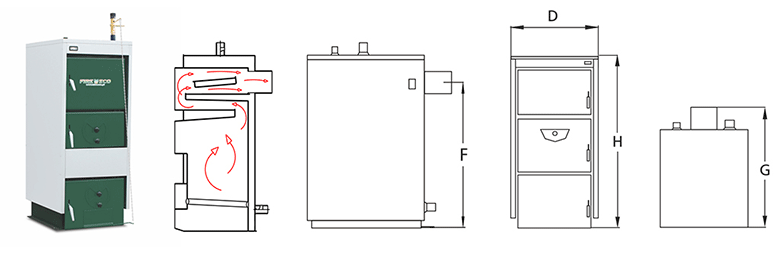

Overall dimensions: - width D - height H - depth G - height F	mm	410 1160 825 960	455 1140 920 930	495 1200 930 1000	515 1215 950 1010	535 1290 1050 1080	535 1330 1075 1110	585 1425 1140 1220	695 1490 1190 1280
Overall dimensions - exchanger: - width - height - depth	mm	410 1160 425	455 1140 530	495 1200 570	515 1215 600	535 1290 700	535 1315 725	585 1425 790	695 1490 840
Boiler weight without water	kg	165	179	218	232	280	291	376	470

Control

Thermostatic chimney air draft control device, so-called air draft control, with possibility to set water temperature in central heating furnaces for solid fuel, is an ordinary appliance equipped with a head made from material resistant to high temperature and mechanical damage. The control device guarantees easy operation and longevity of central heating furnaces. The dimensions of the device are 120 x 145 mm with tie span of 120 degrees, temperature range 30-90 °C and the maximal load capacity of 0.8 kg.

The control device controls the water temperature in boiler by means of a built-in, adjustable thermostatic head, by increasing or decreasing the amount of air needed for fuel burning in boiler. It can be installed on all kinds of solid fuel furnaces, with female threaded ?" connection, in horizontal or vertical position.

Boiler configurations

In the advanced boiler configuration we offer a few options:

we offer a selection of the location of the feeder from the left-hand / right-hand side of the boiler
we offer a selection of opening the door to the left / to the right
we offer a selection of the diameter and kind of power and return connectors
we offer a selection of the location of the power and return connectors
we offer a selection of the shape and location of the boiler flue, e.g. elbow to the left, to the top etc.

1. The output of the flue
at the back in the middle.

2. The output of the flue
at the back
(the elbow to the left).

3. The output of the flue
at the back
(the elbow to the right).

4. The output
of the flue upwards.

5. The output of the flue
at the back
(the elbow towards the back).

6. The output of the flue
from the top
(the elbow to the left).

7. The output of the flue
from the top
(the elbow to the right).

The shape of the flue

The shape of the flue can be selected in accordance with the customer’s expectations. We offer the circular shape / the square shape / the rectangular shape.
